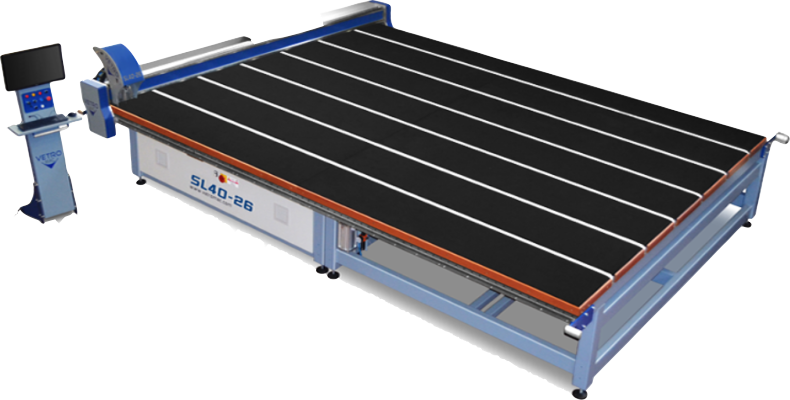

SL40-26 Technical data - similar for other sizes

Max. workable glass sheet mm. 4000 x 2600 (157.4” x 102.3”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 1600 (3527 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 8 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 180m/min (590 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.

SL40-26 *

Max. workable sheet size mm 4000 x 2600

inches 157.4” x 102.3” * Other sizes available
CNC GLASS CUTTING MACHINES

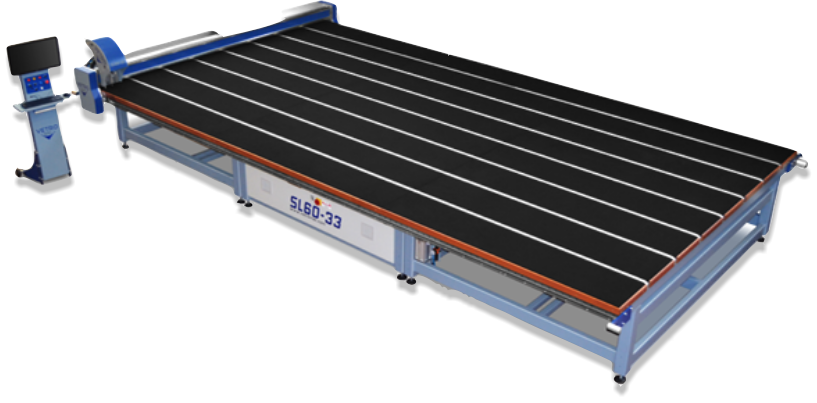

SL60-33 Technical data

Max. workable glass sheet mm. 6100 x 3300 (236” x 129.9”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 3200 (7055 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 12 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 220m/min (721 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.

SL 60-33-Jumbo Cutting

Max. workable sheet size mm 6000 x 3300

inches 236” x 129.9”
CNC GLASS CUTTING MACHINES

Vetromac SL Series - CNC Glass Cutting Lines

Options

Edge Deletion for Soft Coat Low E Glass- with 125mm brush for production shops.

Edge Deletion for Soft Coat Low E Glass- with 20mm brush for lower volume shops.

Additional Options:

Vinyl Film Cutting Import DXF’s and XLS Files Label Printer at Table PC Extra Optimization Licences Air Floatation Fixed Stops
User Interface: Multitasking systems, control of three interpolated axles, easy-to-use, with icons and buttons of the relevant command, with Computer WiFi and 21" Touch Screen. Optimisation program: Opty-Way or PerfectCut Optimization software. Includes a 250 parametric shapes library, import/export data.
CNC Glass Cutting Tables Mobile Glass Handling Solutions UATTROLIFTS GEM GLASS  MACHINES GEM TOOL •	Glass Diamond Wheels •	Glass Resin Wheels •	Glass Polish Wheels •	Glass Drill Bits Glass Storage, Dollies, Other Glass Handling  Equipment Glass Handling  Equipment

SL40-26 Technical data

- similar for other sizes

Max. workable glass sheet mm.

4000 x 2600 (157.4” x 102.3”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 1600 (3527 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 8 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 180m/min (590 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.

SL40-26 *

Max. workable sheet size mm 4000 x 2600

inches 157.4” x 102.3” * Other sizes available
CNC GLASS CUTTING MACHINES

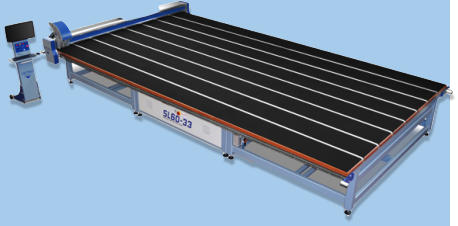

SL60-33 Technical

data

Max. workable glass sheet mm.

6100 x 3300 (236” x 129.9”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 3200 (7055 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 12 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 220m/min (721 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.

SL 60-33-Jumbo Cutting

Max. workable sheet size mm 6000 x 3300

inches 236” x 129.9”
CNC GLASS CUTTING MACHINES
Layout SL60-33
Layout SL40-26
Layout SL42-26
Layout SL42-28

Vetromac SL Series- Belt Transport

CNC Glass Cutting Lines

Options

Edge Deletion for Soft Coat Low E Glass- with

125mm brush for production shops.

Edge Deletion for Soft Coat Low E Glass- with

20mm brush for lower volume shops.

Additional Options:

Vinyl Film Cutting Import DXF’s and XLS Files Label Printer at Table PC Extra Optimization Licences Air Floatation Fixed Stops
User Interface: Multitasking systems, control of three interpolated axles, easy-to-use, with icons and buttons of the relevant command, with Computer WiFi and 21" Touch Screen. Optimisation program: Opty-Way or PerfectCut Optimization software. Includes a 250 parametric shapes library, import/export data.
CNC Glass Cutting Tables Mobile Glass Handling Solutions UATTROLIFTS GEM TOOL •	Glass Diamond Wheels •	Glass Resin Wheels •	Glass Polish Wheels •	Glass Drill Bits Glass Storage, Dollies, Other Glass Handling  Equipment Glass Handling  Equipment GEM GLASS  MACHINES
